SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.

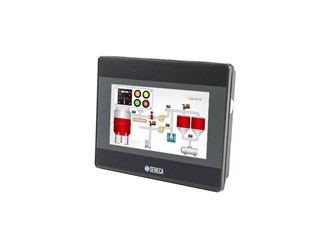

VISUAL1 is a 4.3" HMI equipped with a powerful Cortex A8 600MHz CPU, 128 MB of RAM, high quality display LED backlights with a 480x272 pixel resolution, 2 serial ports (Nr. 1 RS232/RS485 and Nr. 1 RS485) and 1 ethernet port.
| ORDER CODE : | VISUAL1E |
| DESCRIPTION: | 4,3" HMI panel touchscreen |
| POWER SUPPLY: | 24 Vdc |
| POWER CONSUPTION: | 400 mA @ 24 Vdc |
| DISPLAY: | 4.3” TFT LCD, 480x272 px resolution, 65k colors |
| TOUCHSCREEN: | Resistive 4 wires |
| CONNECTIONS: | Nr. 1 Ethernet port Nr. 1 miniUSB Host 2.0 port Nr. 1 RS232 port Nr. 1 RS485 port |
| OPERATING TEMPERATURE: | -20..+60°C |
| PROTECTION DEGREE: | NEMA4 / IP65 |
| CPU: | Cortex A8 600MHz |
| FLASH MEMORY: | 128 MB |
| RAM: | 128 MB |
| RTC: | built-in |
| DIMENSIONS (WXHXD): | 128x102x32 mm |
| WEIGHT: | 250 g |
| STANDARD: | CE |
