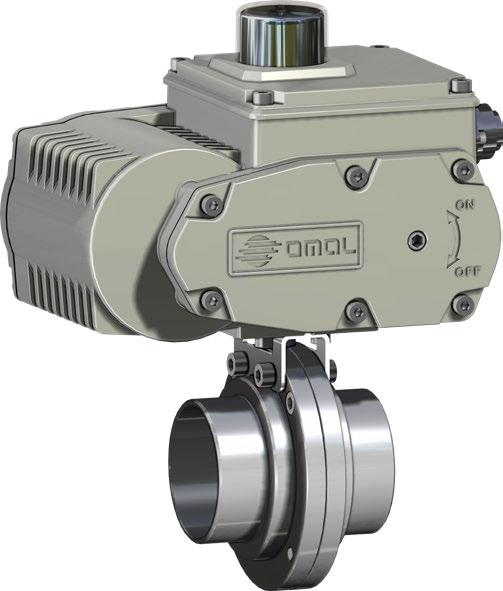

OMAL衛生級蝶閥 Item 490-492-493

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO  WITH DOUBLE ACTING PNEUMATIC ACTUATOR

MISURA

SIZE

ARTICOLO “F/F GAS”

ARTICOLO “F/F DIN”

ARTICOLO saldare di testa

ATTUATORE

KIT montaggio

L

H

Kg

DN [mm]

[inch]

ITEM CODE “F/F GAS”

ITEM CODE “F/F DIN”

ITEM CODE butt weld

ACTUATOR

Mounting KIT

[mm]

[mm]

DN 25

1"

DG490H006

DG492H066

DG493H086

DAN0015411S

KCF042253

159,0

120,2

1,6

DN 32

1" 1/4

DG490H007

DG492H067

DG493H087

DAN0015411S

KCF042253

159,0

125,2

1,7

DN 40

1" 1/2

DG490H008

DG492H068

DG493H088

DAN0015411S

KCF042253

159,0

127,2

2,2

DN 50

2"

DG490H009

DG492H069

DG493H089

DAN0030411S

KCF042253

174,2

140,2

2,9

DN 65

2" 1/2

DG490H010

DG492H070

DG493H090

DAN0045412S

KCF042254

188,5

155,5

3,4

DN 80

3"

DG490H011

DG492H071

DG493H091

DAN0060412S

KCF052256

198,0

168,4

4,3

DN 100

4"

DG490H012

DG492H072

DG493H092

DAN0106411S

KCF072257

237,0

193,3

6,5

CON ATTUATORE ELETTRICO ON-OFF

WITH ON-OFF ELECTRIC ACTUATOR

MISURA

SIZE

ARTICOLO “F/F GAS”

ARTICOLO “F/F DIN”

ARTICOLO saldare di testa

ATTUATORE

KIT montaggio

L

H

Kg

DN [mm]

[inch]

ITEM CODE “F/F GAS”

ITEM CODE “F/F DIN”

ITEM CODE butt weld

ACTUATOR

Mounting KIT

[mm]

[mm]

DN 25

1"

C490A5E06

C492A5E66

C493A5E86

EA0035A5C000

KCF052255

250,0

185,0

4,4

DN 32

1" 1/4

C490A5E07

C492A5E67

C493A5E87

EA0035A5C000

KCF052255

250,0

190,0

4,5

DN 40

1" 1/2

C490A5E08

C492A5E68

C493A5E88

EA0035A5C000

KCF052255

250,0

192,0

5,0

DN 50

2"

C490A5E09

C492A5E69

C493A5E89

EA0035A5C000

KCF052255

250,0

198,0

5,5

DN 65

2" 1/2

C490A5G10

C492A5G70

C493A5G90

EA0070A5C000

KCF052255

250,0

208,0

5,8

DN 80

3"

C490A5G11

C492A5G71

C493A5G91

EA0070A5C000

KCF053106

250,0

215,0

8,2

DN 100

4"

C490A5I12

C492A5I72

C493A5I92

EA0130A5C000

KCF072257

280,0

247,6

11,5

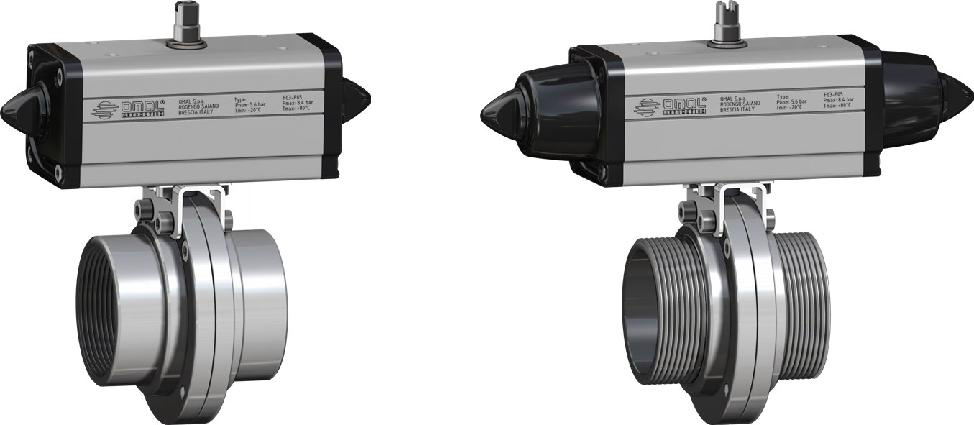

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO

WITH DOUBLE ACTING PNEUMATIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

DG494H006

DAN0015411S

KCF042253

159,0

120,2

1,6

1" 1/2

DG494H008

DAN0015411S

KCF042253

159,0

127,2

2,2

2"

DG494H009

DAN0030411S

KCF042253

174,2

140,2

2,9

2" 1/2

DG494H010

DAN0045412S

KCF042254

188,5

155,5

3,4

3"

DG494H011

DAN0060412S

KCF052255

198,0

168,4

4,3

4"

DG494H012

DAN0106411S

KCF072257

237,0

193,3

6,5

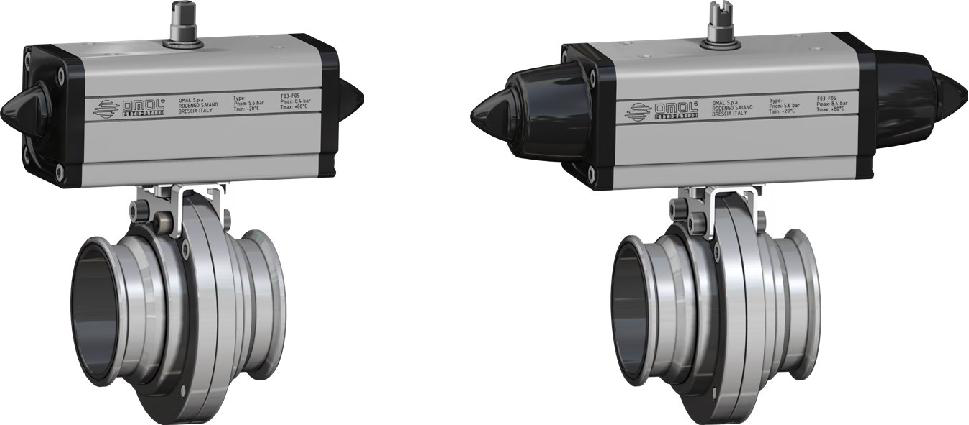

CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO

WITH SPRING RETURN PNEUMATIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

SG494H006

SRN0015401S

KCF042253

233,2

127,2

2,2

1" 1/2

SG494H008

SRN0015401S

KCF042253

233,2

134,2

2,5

2"

SG494H009

SRN0030402S

KCF052255

258,8

151,4

3,8

2" 1/2

SG494H010

SRN0053401S

KCF075308

304,2

174,3

5,3

3"

SG494H011

SRN0060401S

KCF075752

338,5

185,0

9,3

4"

SG494H012

SRN0090401S

KCF105307

393,7

227,5

11,9

CON ATTUATORE ELETTRICO ON-OFF

WITH ON-OFF ELECTRIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

C494A5E06

EA0035A5C000

KCF052255

250,0

185,0

4,4

1" 1/2

C494A5E08

EA0035A5C000

KCF052255

250,0

192,0

5,0

2"

C494A5E09

EA0035A5C000

KCF052255

250,0

198,0

5,5

2" 1/2

C494A5G10

EA0070A5C000

KCF052255

250,0

208,0

5,8

3"

C494A5G11

EA0070A5C000

KCF053106

250,0

215,0

8,2

4"

C494A5I12

EA0130A5C000

KCF072257

280,0

247,6

11,5
